At Lee Drafting, I provide professional residential drafting services for homeowners and contractors throughout El Dorado County and the surrounding region. Whether you're planning a custom home, an addition, an ADU, or a garage, my goal is to turn your ideas into accurate, permit-ready construction drawings while making the process as straightforward as possible.



Residential Drafting Services

I provide drafting services for a wide range of residential projects, including:

  • Custom Homes
  • Home Additions
  • Remodels
  • Accessory Dwelling Units (ADUs)
  • Garages
  • Shops
  • Decks
  • Barns and Agricultural Buildings
  • Site Plans
  • As-Built Drawings
  • Permit Drawing Sets



"Shannon does amazing work! Very detailed and great communication.  Follows-up

with the building department every week to make sure they have everything they need.

I really appreciate the partnership he creates with his clients."

(JD Stinson, Cameron Park)



Every project is prepared with the drawings typically required for residential permit submittals, including:

  • Cover Sheet
  • Site Plan
  • Floor Plan
  • Foundation Plan
  • Floor Framing Plan
  • Roof Plan
  • Exterior Elevations
  • Electrical Plan
  • Building Sections
  • General Construction Notes

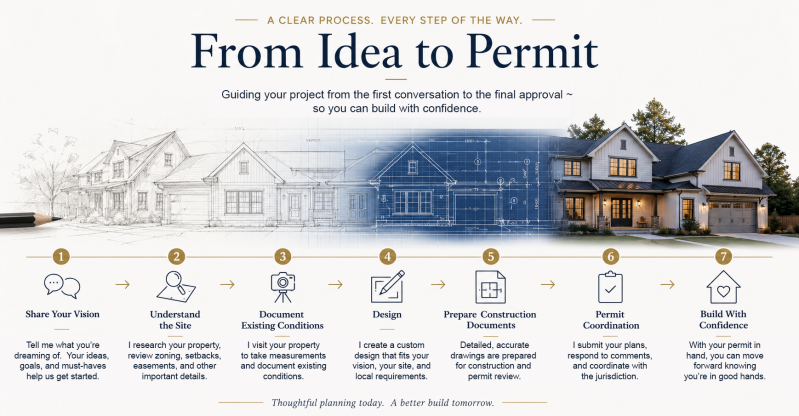

  • From Concept to Permit



Every project begins with understanding your property and your goals.



Before we even meet, I research the property to identify applicable setbacks and site requirements. I also prefer to visit the property personally whenever possible so I can better understand the site before beginning the design process.

Whether you bring a complete sketch, photos of homes you like, or simply an idea you've been thinking about, I can help develop that concept into construction drawings. If you're still exploring possibilities, I'm happy to work with you on an hourly basis to develop a design that fits your vision.



Engineering & Permit Coordination

Residential projects often require coordination with structural engineers and other consultants. I work closely with these professionals throughout the drafting process and incorporate their requirements into the final construction documents.

If the building department requests plan check corrections, I remain involved to revise the drawings as needed until the permit set is complete.

My goal is not simply to create drawings—it's to help move your project successfully through the permitting process.



Project Timeline

Most residential drafting projects require approximately 60–100 hours of drafting time, depending on the size and complexity of the project.

Project schedules can also be affected by engineering review times, agency plan check, and design revisions requested during the process. While changes are a normal part of design, finalizing major decisions early helps keep projects moving efficiently.



Service Area

Lee Drafting primarily serves clients throughout El Dorado County and neighboring communities within approximately a 60-mile radius of Placerville.

Projects outside the immediate area may also be accommodated. Many aspects of the design process can be completed through phone, email, and online communication when appropriate.



Why Work With Lee Drafting?

With more than 20 years of residential drafting experience, I understand both the technical requirements of construction drawings and the practical realities of building.

  • Clients appreciate working with Lee Drafting because I provide:
  • Professional permit-ready drafting
  • Clear communication throughout the project
  • Coordination with structural engineers
  • Site visits whenever possible
  • Continued support through permit review
  • Competitive pricing
  • Efficient drafting turnaround

Whether you're building your dream home, planning an addition, or beginning with nothing more than an idea, I'd be happy to help you take the next step.
